Lotour LD206 PLUS

Lotour LD206 PLUS is a premium open shoulder tire, excellent for long haul and regional pickup tire applications. Featuring a center interlocking tread block designed for improved stability, the LD206 Plus delivers exceptional tread life.



Lotour Truck Drive

Tire Size:11r22 5 Drive Tires、11r24 5 Drive Tires

Features and Benifits



LOTOUR LD206 PLUS Wide and Deep tread

Wide and Deep tread

Wide and Deep tread provides long mileage.



LOTOUR LD206 PLUS Open shoulder and tread grooves

Open shoulder and tread grooves

Open shoulder and tread grooves are designed to reduce rock entrapment and provide good drainage and self-cleaning capability.



LOTOUR LD206 PLUS Rationalized block stiffness

Rationalized block stiffness

Rationalized block stiffness distribution excellent performance in irregular wear resistance.



LOTOUR LD206 PLUS Extra strong casing design

Extra strong casing design

Extra strong casing design for enhanced durability, full width fourth belt to protect it in harsh off-road environments.




Datasheet



Tire Size:11R22.5                                                          Tire Size:11R24.5
Ply Rating: 18PR                                                           Ply Rating: 16PR
Load Range:                                                                Load Range: M
Load Index: 146/143                                                    Load Index: 146/143
Tread Depth(MM): 21.00                                                Tread Depth(MM): 21.00
Tread Width(MM):  215                                                 Tread Width(MM):  215
Tire Weight (KG): 53.60                                                 Tire Weight (KG):56.50
Overall Width (MM): 279                                               Overall Width (MM): 279
Overall Diameter (MM): 1064                                       Overall Diameter (MM):1104
Single Max Load (KG): 3250                                         Single Max Load (KG): 3250
Dual Max Load (KG): 3000                                            Dual Max Load (KG): 3000
Single Inflation(KPA): 930                                            Single Inflation(KPA): 830





Size PR Pattern Standard Load Speed Rating Section width(mm) Tread Depth(mm) Load Capacity TREAD Width(mm)
Rim index Single Dual
11R22.5 18 LD206 PLUS 8.25 146/143 M 279 21.00 3250 3000 215
11R24.5 16 LD206 PLUS 8.25 149/146 M 279  21.00 3250 3000 215

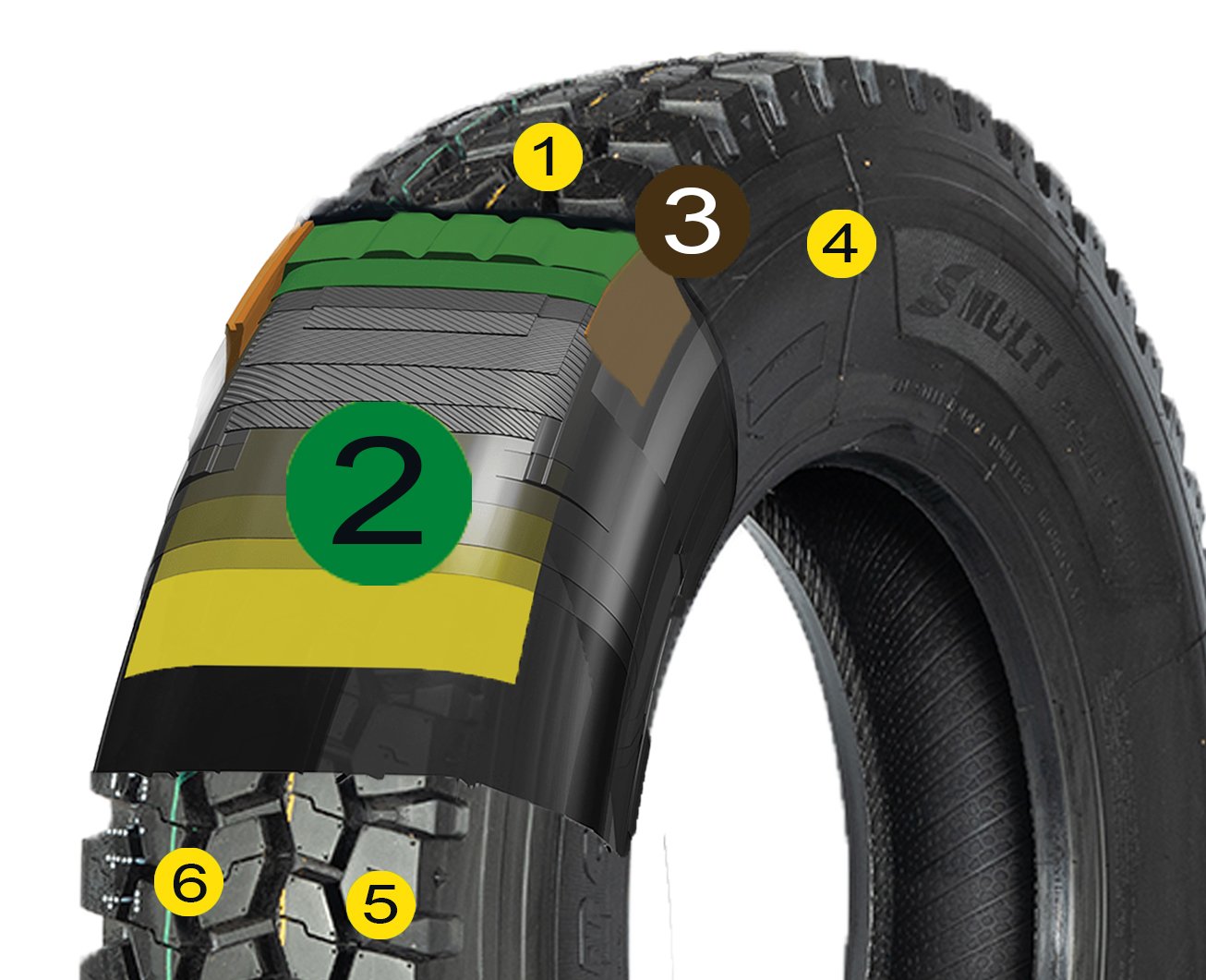

Tire Cutaway Features



① FUEL-SAVING COMPOUNDS

LOTOUR LD206 PLUS TIRES

Improves energy efficiency by optimizing the rolling of the tire, thereby enhancing fuel economy.
② STRONGSTEEL-BELT CONSTRUCTION
Helps enhance toughness and tire life
③ PROTECTIVE SHOULDER COMPOUND
Helps guard the outer tread from accidental curb damage
④ SOLID SHOULDER RIB
Provide uniform wear in the shoulder
⑤ PRESSURE DISTRIBUTIONGROOVE
Helps promote even wear
⑥ CIRCUMFERENTIAL ANDLATERAL GROOVES
Help deliver all-season traction

Tire Warranty Good in the United States and Canada

Free Tire Replacement

Lotour truck tires covered by this warranty that become unserviceable due to a covered warranty condition during the first 2/15″ treadwear or 12 months from date of purchase, whichever comes first, will be replaced with a comparable new Lotour tire without charge.

Prorated Tire Replacement

Tires worn beyond the first 2/15″ treadwear that become unserviceable due to a covered warranty condition will be replaced on a prorated basis.

Free Tire Replacement Policy

Any Lotour truck tires that become unusable due to a covered warranty condition during the initial period of either 2/15″ treadwear or 12 months from the date of purchase, whichever occurs first, will be replaced free of charge with a new comparable Lotour tire.

Pro-Rated Tire Replacement Policy

For Lotour truck tires that exceed the initial 2/15″ treadwear and become unusable due to a covered warranty condition, a pro-rated replacement system will be applied.
